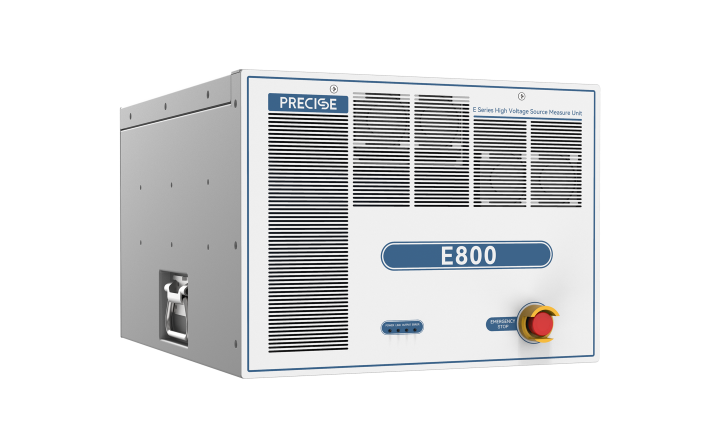

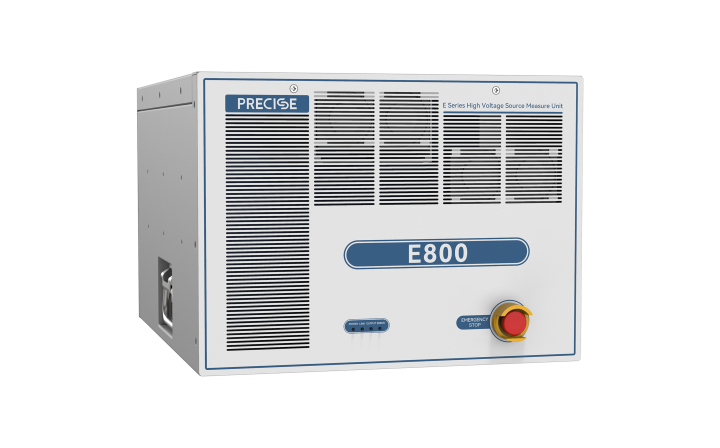

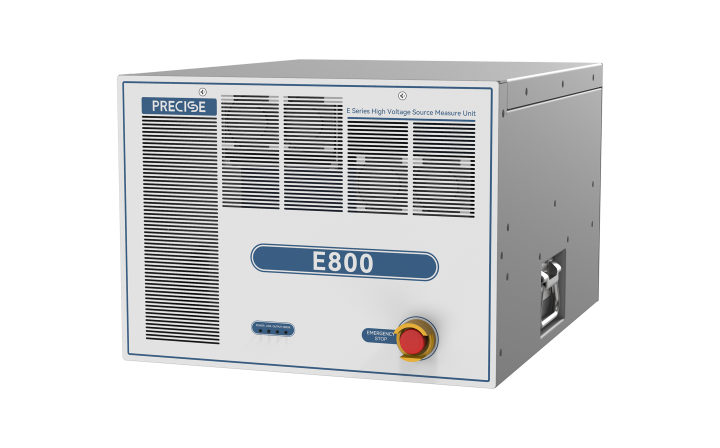

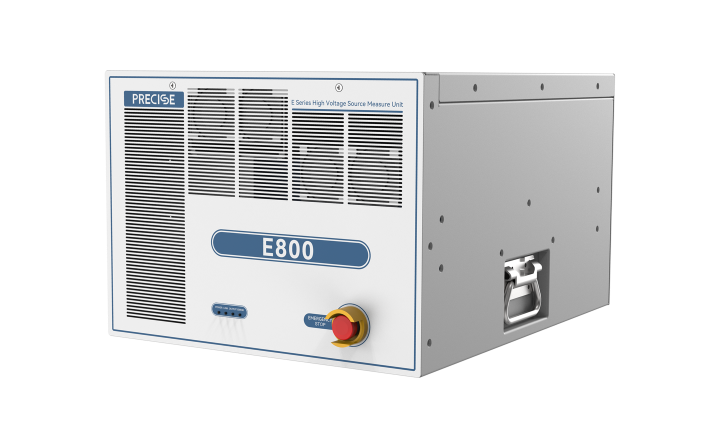

E800 Series High Voltage Source Measure Unit
The high voltage source E series has the characteristics of high output and measurement voltage (8000V), and can output and measure weak current signal(1nA). The equipment works in the first quadrant, the output and measurement voltage is 0-8000V, and the output and measurement current is 0-40mA. Support constant voltage and constant current working mode, and support rich I-V scan modes.
The equipment can be used in IGBT breakdown voltage test, IGBT dynamic test bus capacitor charging power supply, IGBT aging power supply, lightning protection diode withstand voltage test, varistor withstand voltage test and other occasions. Its constant current mode is of great significance for quickly measuring the breakdown point.
Product Feature
n ms level rising and falling edges, reducing the power on time of the DUT and lowering heat generation;
n Single device max voltage 8000V, max current 40mA, max power 320W, expandable to 12kV;
n Constant voltage or constant current output, synchronous measuring of current or voltage;
n 0.1% accuracy, leakage current test at nA level under high voltage;
n Supports linear, logarithmic, and user-defined scanning;
n Constant voltage current limiting, current limiting to avoid pipe explosion;
Items | Specifications |
Max output power | 350W，3500V/100mA；320W，8000V/40mA |
Output voltage settling time | < 5ms |
Output connector | Triple coaxial KHV |
Scan | Supports linear, logarithmic and customized sweep |
Communication port | RS232、LAN |
Protection | Support emergency stop and high voltage interlock protection |
Trigger | Support trig in and trig out |
Size | E800: 19inch, 7U, depth: 520mm(Excluding ear hooks and emergency stop buttons) |
Product selection
Model | Max voltage | Max current | Max power | Accuracy | Communication interface |
E800 | 8000V | 40mA | 320W | 0.1% | RS-232/LAN |
